# CyberPower UPS RMCARD205
sensor:
  - platform: snmp
    scan_interval: 60
    name: "ups_batterycapacity"
    host: xxx.xxx.xxx.xxx
    baseoid: 1.3.6.1.4.1.3808.1.1.1.2.2.1.0
    accept_errors: true
    unit_of_measurement: '%'
  - platform: snmp
    scan_interval: 60
    name: "ups_load"
    host: xxx.xxx.xxx.xxx
    baseoid: 1.3.6.1.4.1.3808.1.1.1.4.2.3.0
    accept_errors: true
    unit_of_measurement: '%'
  - platform: snmp
    scan_interval: 60
    name: ups_nompower
    host: xxx.xxx.xxx.xxx
    baseoid: 1.3.6.1.4.1.3808.1.1.1.4.2.5.0
    accept_errors: true
    unit_of_measurement: Watts
  - platform: snmp
    scan_interval: 60
    name: ups_nominv
    host: xxx.xxx.xxx.xxx
    baseoid: 1.3.6.1.4.1.3808.1.1.1.3.2.1.0
    accept_errors: true
    unit_of_measurement: Volts
    value_template: '{{((value | int) / 10) | int}}'
  - platform: snmp
    scan_interval: 60
    name: ups_timeleft
    host: xxx.xxx.xxx.xxx
    baseoid: 1.3.6.1.4.1.3808.1.1.1.2.2.4.0
    accept_errors: true
    unit_of_measurement: 'minutes'
    value_template: '{{((value | int) / 6000) | int}}'
  - platform: snmp
    scan_interval: 30
    name: ups_status
    host: xxx.xxx.xxx.xxx
    baseoid: 1.3.6.1.4.1.3808.1.1.1.4.1.1.0
    accept_errors: true
    value_template: >-
      {% set status = (value | int) %}
      {%- if status == 2 -%}
      Online
      {%- elif status ==  3 -%}
      On Battery
      {%- elif status ==  4 -%}
      On Boost
      {%- elif status ==  5 -%}
      On Sleep
      {%- elif status ==  6 -%}
      Off
      {%- elif status ==  7 -%}
      Rebooting
      {%- elif status ==  8 -%}
      On ECO
      {%- elif status ==  9 -%}
      On Bypass
      {%- elif status ==  10 -%}
      On Buck
      {%- elif status ==  11 -%}
      On Overload
      {%- else -%}
      Unknown
      {%- endif -%}

group:
  ups:
    name: UPS
    entities:
      - sensor.ups_batterycapacity
      - sensor.ups_load
      - sensor.ups_status
      - sensor.ups_nompower
      - sensor.ups_nominv
      - sensor.ups_timeleft

homeassistant:
  customize:
    sensor.ups_batterycapacity:
      friendly_name: 'UPS Battery Capacity'
      icon: mdi:battery
    sensor.ups_load:
      friendly_name: 'UPS Load'
      icon: mdi:percent
    sensor.ups_nompower:
      friendly_name: 'UPS Nominal Output Power'
      icon: mdi:flash
    sensor.ups_nominv:
      friendly_name: 'UPS Nominal Input Voltage'
      icon: mdi:flash
    sensor.ups_status:
      friendly_name: 'UPS Status'
      icon: mdi:information-outline
    sensor.ups_timeleft:
      friendly_name: 'UPS Time Left'
      icon: mdi:clock-alert

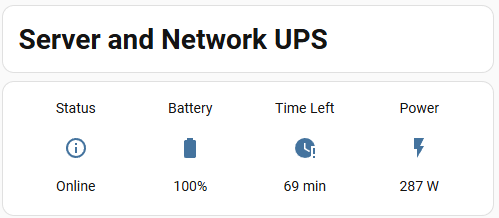

type: vertical-stack
cards:
  - type: markdown
    content: <h1>Server and Network UPS</h1>
  - type: horizontal-stack
    cards:
      - type: entity
        entity: sensor.ups_status
        name: Status
      - type: entity
        entity: sensor.ups_batterycapacity
        name: Battery
      - type: entity
        entity: sensor.ups_timeleft
        name: Time Left
  - type: horizontal-stack
    cards:
      - type: entity
        entity: sensor.ups_load
        name: Load
      - type: entity
        entity: sensor.ups_nompower
        name: Consumption
