A YAML script for Home Assistant that will allow you to add additional sensors for the Energy Dashboard

Configuration YAML

This is a YAML I put together for the Energy Consumption of a Athom Smart Plug: AU Plug for ESPHome

esphome.yaml
sensor:
  - platform: integration
    source: sensor.athom_smart_plug_v2_ec0fa2_power
    name: garage_fan_wh
    unit_time: h
    method: left
    round: 2

utility_meter:
  garage_fan_wh_daily:
    source: sensor.garage_fan_wh
    cycle: daily

homeassistant:
  customize:
    sensor.garage_fan_wh:
      friendly_name: "Garage Fan Consumption Energy"
      unit_of_measurement: Wh
      device_class: energy
    sensor.garage_fan_wh_daily:
      friendly_name: "Garage Fan Consumption Energy (Daily)"
      unit_of_measurement: Wh
      device_class: energy

group:
  esphome:
    name: ESP Home
    entities:
      - sensor.garage_fan_wh
      - sensor.garage_fan_wh_daily

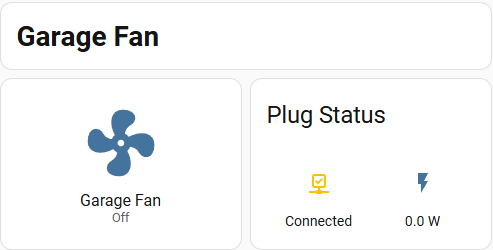

Dashboard YAML

type: vertical-stack
cards:
  - type: markdown
    content: <h1>Garage Fan</h1>
  - type: horizontal-stack
    cards:
      - show_name: true
        show_icon: true
        type: button
        entity: switch.athom_smart_plug_v2_ec0fa2_switch
        show_state: true
        icon: mdi:fan
        icon_height: 80px
        name: Garage Fan
      - show_name: false
        show_icon: true
        show_state: true
        type: glance
        entities:
          - entity: binary_sensor.athom_smart_plug_v2_ec0fa2_status
          - entity: sensor.athom_smart_plug_v2_ec0fa2_power
        title: Plug Status

Energy Dashboard

The following sensor can be added to the Energy Dashboard as an Individual Device

  • Friendly Name: "Garage Fan Consumption Energy (Daily)"
  • Display Name: "Garage Fan"
